Professional Manufacturer of Biomagnetic Beads
PRODUCT PARAMETERS
- Product No.: 231017
- Extraction Methods: magnetic bead method
- Sepc: Bottled 50T/box, 100T/box, 200T/box
Description
(Magnetic Bead Method)
【Product Introduction】
This product uses a lysis buffer to directly lyse Gram-negative samples or lyse Gram-positive samples with lysozyme to release nucleic acids, and the magnetic beads selectively adsorb nucleic acids in the lysis buffer under the action of the binding buffer. A small amount of impurities adsorbed by the magnetic beads are removed by cleaning the washing buffer. Under the action of the elution buffer, the magnetic beads release the adsorbed nucleic acid, namely to obtain high-quality DNA / RNA. The DNA / RNA extracted from this product requires no toxic reagents such as phenol and chloroform, and the obtained DNA / RNA can be directly used for downstream experiments.
【Product advantages】
- Before the magnetic bead method to extraction, the bacterial DNA / RNA with high purity and better integrity can be obtained without centrifugation.
- Simple and fast, 10-30 µg of nucleic acid can be obtained from 1 mL of bacterial buffer for about 30 min.
3. Magnetic bead method extraction can process multiple samples at the same time, achieving high throughput and automation extraction.
4.The use process is safe, without liquid nitrogen grinding, the product does not contain phenol, chloroform, and other harmful reagents.
5. Proteinase K does not need to be added in the extraction proces. The kit can be transported and stored at room temperature.
6. High sensitivity, the kit can be suitable for trace sample extraction.

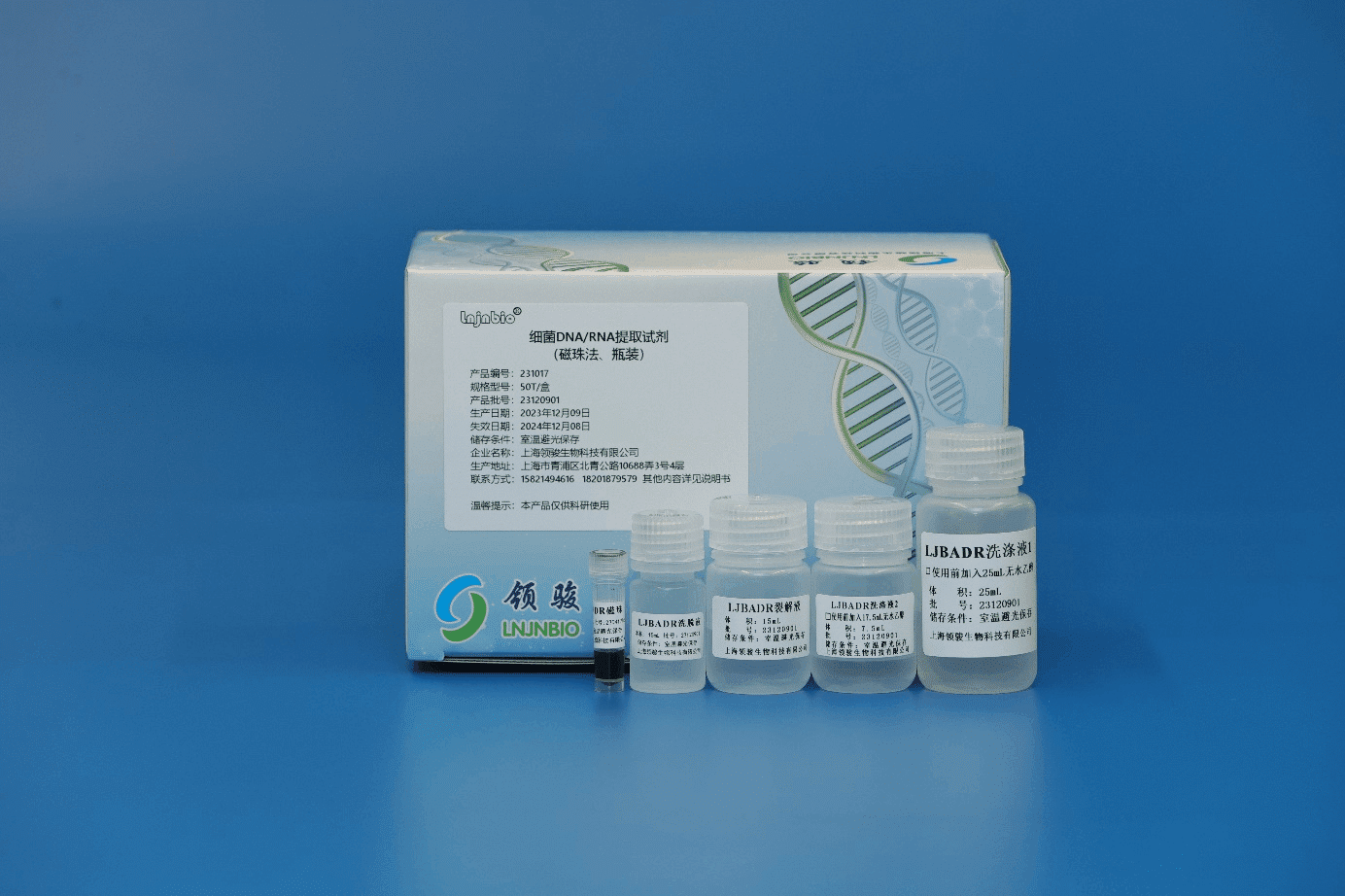

【Product image】
【Experimental cases】
Case 1: E. coli was grown overnight, the bacteria were collected by centrifugation, and DNA / RNA was extracted. The results were as follows:
Number | Sample | A260/A280 | A260/A230 | Conc.(ng/μL) | Yield(μg) |
1 | 500 μL | 1.952 | 2.084 | 57.45 | 5.745 |
2 | 1.956 | 2.052 | 57.35 | 5.735 | |
Avg | 1.954 | 2.068 | 57.4 | 5.74 | |
3 | 600 μL | 1.939 | 2.017 | 79.45 | 7.945 |
4 | 1.934 | 2.028 | 79.45 | 7.675 | |
Avg | 1.937 | 2.023 | 78.1 | 7.81 | |
5 | 800 μL | 1.953 | 2.110 | 98.6 | 9.86 |
6 | 1.956 | 2.111 | 96.75 | 9.675 | |
Avg | 1.955 | 2.111 | 97.675 | 9.7675 |
Peak pattern diagram:

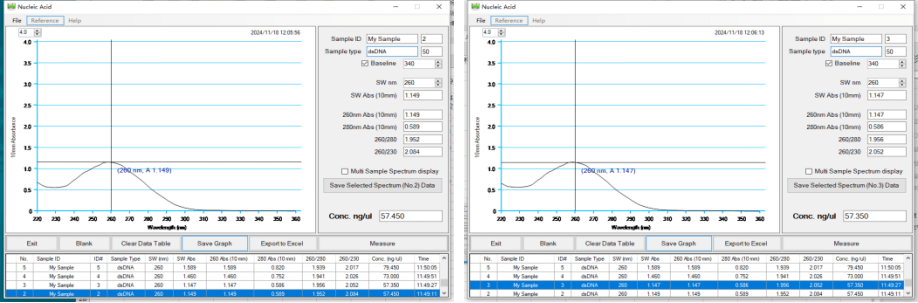

Bacterial solution of 500 μL:

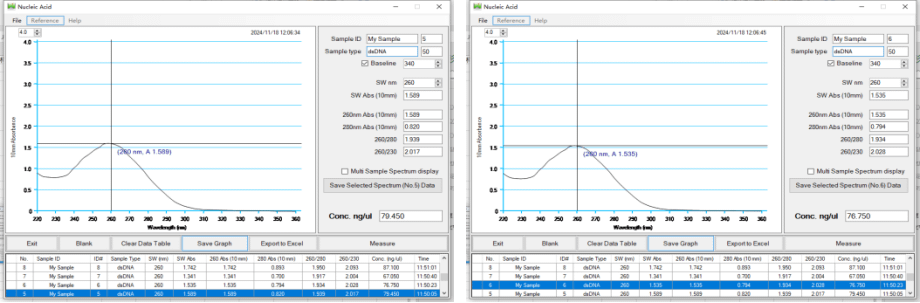

Bacterial solution of 600 μL:
Bacterial solution of 800 μL:

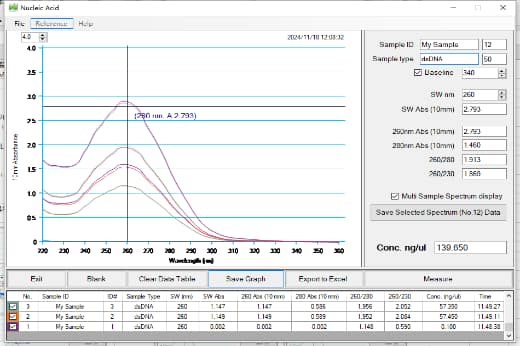

Total peak diagram:

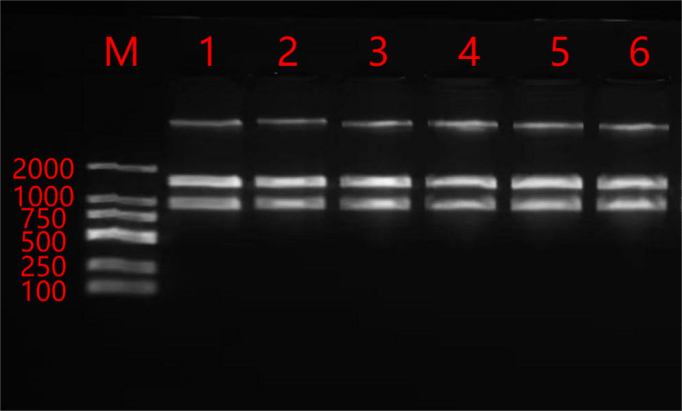

The electropherogram is shown below:
M:Marker(2,000 bp, 1,000 bp, 750 bp, 500 bp, 250 bp, 100 bp);
1-2:Bacterial solution of 500 μL
3-4:Bacterial solution of 600 μL
5-6:Bacterial solution of 800 μL
Result analysis:
The results of the Ultra-Micro Nucleic Acid Assay test showed that:
① The value of A260 / A280 is above 1.9, and the value of A260 / A230 is above 2.0. The complete and basic coincidence of peak shape prove the high purity of the extraction product.
② The nucleic acid extraction yield of different E.coli samples was above 5 µg.
The results of the agarose gel electrophoresis showed that:
① Different E.coli samples have bright and good integrity bands.
In conclusion, the nucleic acid extraction yield of E.coli has high purity, high yield, complete electrophoretic band.
【Application area】
The purified nucleic acids extracted from this kit can be used for PCR, qPCR, enzyme digestion, library construction, and Southern-Blot.
Our products are widely used in many fields, such as medical testing, genetic testing, university research, genetic breeding, and so on. We not only provide products but can also undertake OEM, ODM, and other needs. If you have related needs, please feel free to contact us at sales01@lingjunbio.com.
Supplier Introduction
Shanghai Lingjun Biotechnology Co., Ltd. was established in 2016 and is a professional manufacturer of biomagnetic materials and nucleic acid extraction reagents.
We have rich experience in nucleic acid extraction and purification, protein purification, cell separation, chemiluminescence and other technical fields.
Our products are widely used in many fields, such as medical testing, genetic testing, university research, genetic breeding, and so on. We not only provide products but can also undertake OEM, ODM, and other needs. If you have related needs, please feel free to contact us at sales01@lingjunbio.com.
FAQs
We have magnetic beads in silica, magnetic beads in carboxylic acid, and various kits for nucleic acid extraction by magnetic bead method (samples can be extracted from whole blood, serum plasma free, plasmid, etc.), and the packing specifications of magnetic beads are 2ml, 10ml, 50ml, 500ml, 1000ml, etc. The packing specifications of the kits are: bottles are 50T/box, 100T/box, 200T/box, and the pre-filled kits are 32T/box, 48T/box, 64T/box, 96T/box, and 48T/box. We have 32T/box, 48T/box, 64T/box, 96T/box, and so on.
Land transportation, sea transportation, air transportation, you can choose according to your requirements.
Of course, we provide customized service and also support OEM\ODM.
First, confirm the demand, then sign the contract; after receiving the payment, we will ship the goods within the stipulated or mutually agreed delivery period.
Usually, we will send out the goods within 15 working days after receiving the payment; customized products and large quantities of orders (magnetic beads ≥ 10L, nucleic acid extraction reagents ≥ 300000T) need to be determined by both sides to communicate with the delivery period.
