Lnjnbio Magnetic Beads for Serum/Plasma Free DNA Extraction Kit 231019M

(Magnetic Bead Method) (Sample Volume 300-500 μL)

【Product Introduction】

This product can be used for the extraction of 300-500 μL of serum/plasma free DNA. The lysis solution not only plays the role of lysing serum/plasma samples, but also provides an environment for the magnetic beads to selectively adsorb nucleic acids, thus realizing lysis and binding in one step. The small amount of impurities adsorbed by the magnetic beads is removed by washing with washing solution. The magnetic beads release the adsorbed nucleic acids under the action of the elution solution, thus obtaining high-quality free DNA. free DNA extracted by this product does not require toxic reagents such as phenol and chloroform, and can be used directly in downstream experiments.

【Product advantages】

1、Good extraction effect, especially for small fragments and trace DNA, can achieve a high recovery rate

2、Cleavage and binding in one step, can get the ideal free DNA in half an hour

3、Strong versatility, can be used with different manufacturers of automated nucleic acid extraction equipment

4、According to customer needs to adjust the experiment,  meet the 300-500 mL large volume of sample extraction

5、High flexibility, can be applied to a variety of sample types, such as serum, plasma, cerebrospinal fluid, urine, body fluids and so on. The size and concentration of magnetic beads in the reagent can be adjusted to achieve better nucleic acid extraction for different samples

6、Safe and non-toxic, does not contain phenol and chloroform and other toxic reagents

7、Flexible adjustment of elution volume in the range of 50 μL-100 μL to concentrate circulating DNA

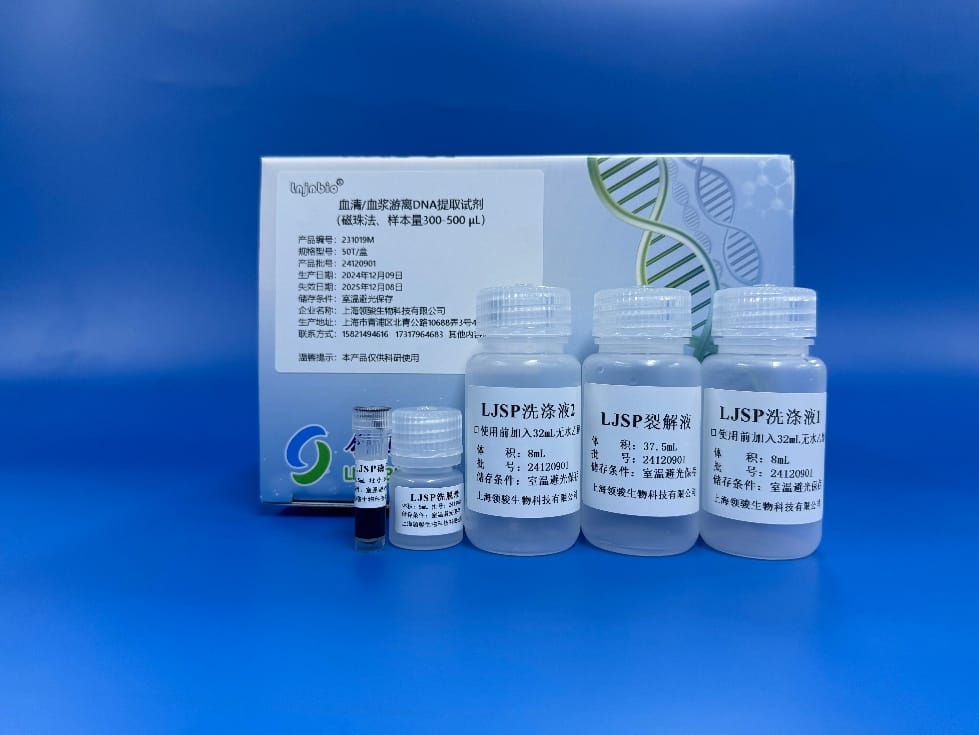

【Product image】

【Experimental cases】

Case 1:

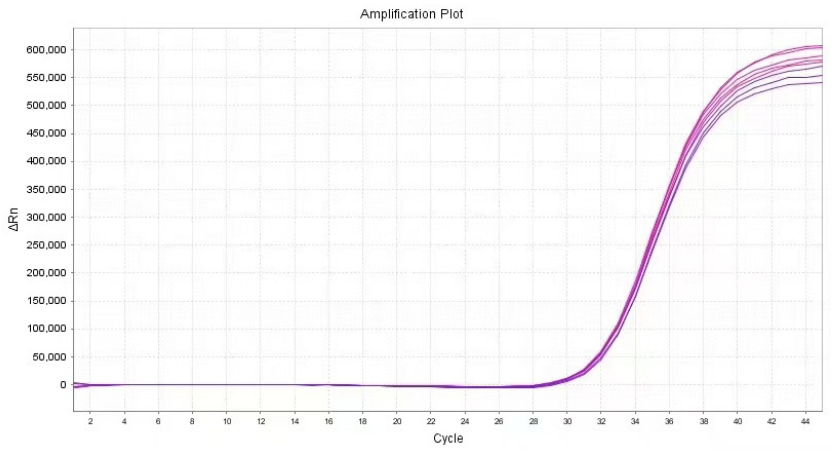

The 100bp exogenous nucleic acid fragment was added to serum for simulation, and samples were extracted and subjected to qPCR.

Result analysis: It indicates that the purity of nucleic acid extracted by the reagent system is good and the reproducibility is good.

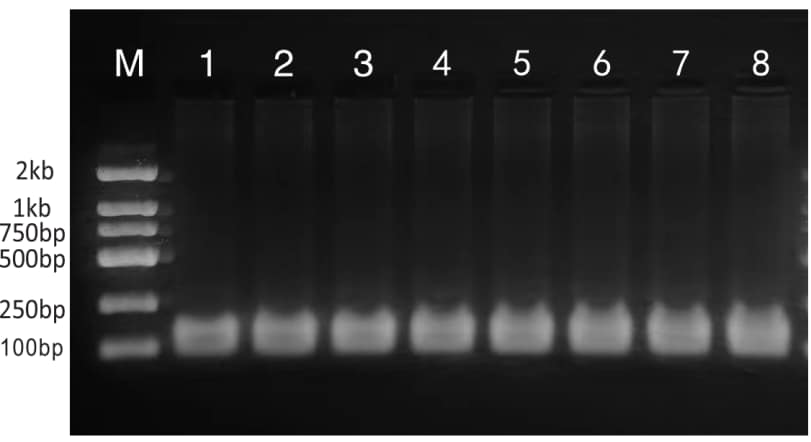

The electrophoresis results were as follows, sample starting volume: 200 μL, 80 μL elution, 6 μL top sample electrophoresis, agarose gel concentration of 1%, 120 V, electrophoresis for 30 min.

Result analysis：As can be seen from the above figure, the experimental results are reproducible and meet the requirements of downstream experiments such as qPCR, ddPCR and high-throughput sequencing.

【Application area】

The extracted and purified nucleic acids of this kit can be used in different analysis platforms, such as qPCR, ddPCR and high-throughput sequencing, to meet the needs of human genetic disease screening in early pregnancy and precise medication guidance for tumors.
