Lnjnbio Magnetic Beads for Plant Genomic DNA Extraction Kit 231015

(Magnetic Bead Method, No Centrifugation)

【Product Introduction】

This kit is mainly used to extract genomic DNA from a variety of plant tissues, the lysis buffer directly lyses plant samples to release nucleic acids, and the magnetic beads selectively adsorb the nucleic acids in the lysis buffer under the action of the binding buffer, remove a small amount of impurities adsorbed by the magnetic beads through the cleaning of the washing buffer, and release the adsorbed nucleic acids by the magnetic beads under the action of the elution buffer to obtain high-quality genomic DNA. The process is easy to operate and is especially suitable for automated nucleic acid extraction platforms. The extracted genomic DNA has high yield, high purity, stable and reliable quality, and can be applied to a variety of downstream molecular biology experiments.

【Product advantages】

1. For both fresh and dried samples, excellent extraction results can be achieved;

2. The extracted product has high purity, high yield, and complete electrophoresis bands;

3. It is highly versatile and suitable for extracting genomic DNA from leaves, fruits, seeds and other samples of different species of plants；

4. The use process is safe, no liquid nitrogen grinding is required, and the product does not contain harmful reagents such as phenol and chloroform.

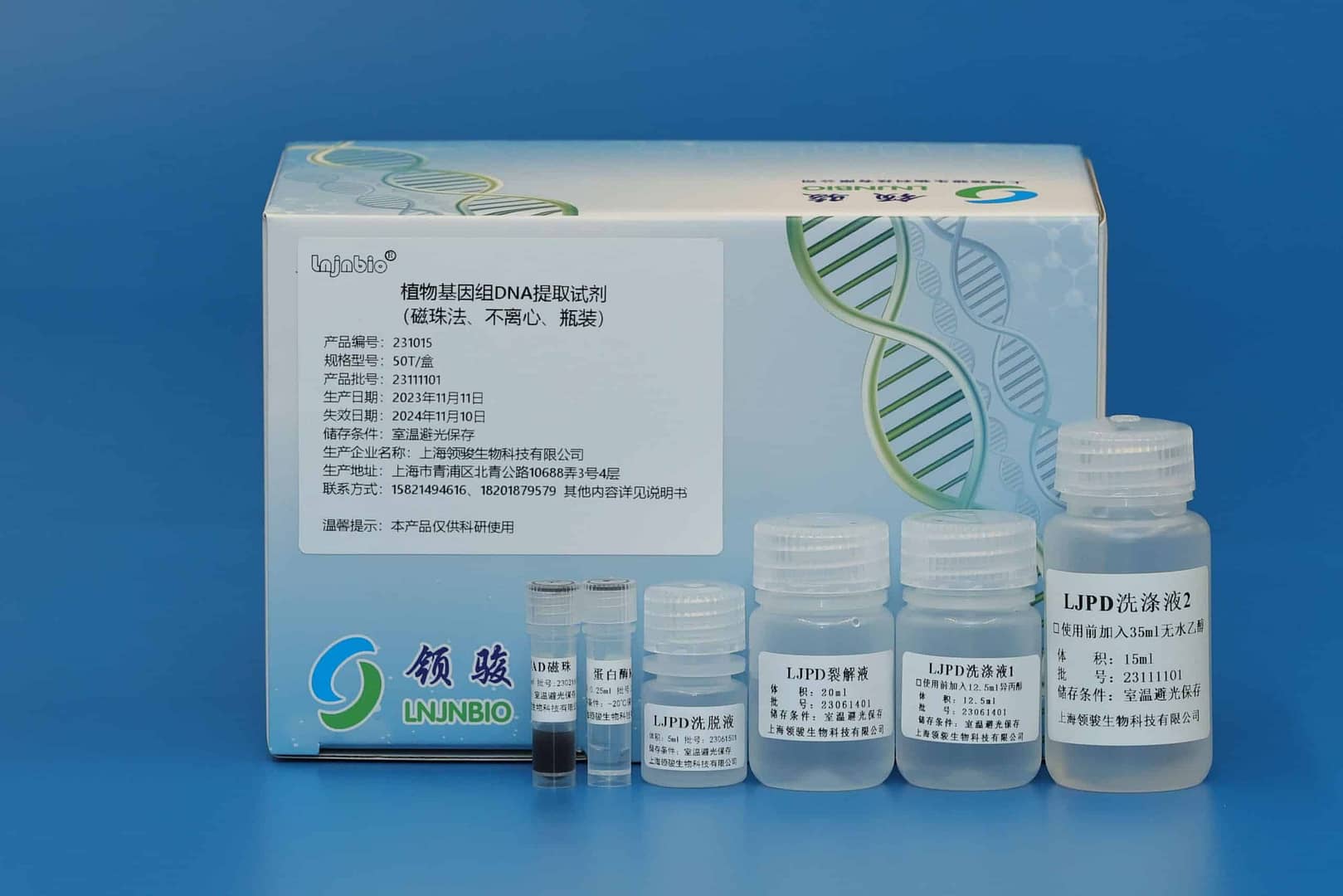

【Product image】

【Experimental case】

Case 1:

Table 1、DNA extraction results from fresh Brassica rapa leaves

No.	Sample	A260/A280	A260/A230	Conc.(ng/ul)
1	5mg Brassica rapa leaves A	1.859	1.745	280.6
2		1.854	1.68	401.35
Avg		1.857	1.713	340.98
3	5mg Brassica rapa leaves B	1.863	1.798	295.15
4		1.852	1.8	305.45
Avg		1.856	1.80	300.3
5	5mg Brassica rapa leaves C	1.925	1.863	461
6		1.907	1.843	527.7
Avg		1.916	1.853	494.35

The electropherogram is shown below:

M:Marker（2K，1K，750bp，500bp，250bp，100bp）

1-2：5mg Brassica rapa leaves A   3-4：5mg Brassica rapa leaves B   5-6：5mg Brassica rapa leaves C

Result analysis:

The results of the Ultra-Micro Nucleic Acid Assay (UMNA) test showed that:

①The values of A260/A280 is above1.8 and A260/A230 is above 1.6, which proves that the extracted products are of high purity.

②Highly yields of nucleic acids extracted from Brassica rapa leaves.

The results of agarose gel electrophoresis showed that:

①5 mg Brassica rapa leaves have bright bands and good integrity.

In conclusion, the extracted genomic DNA of Brassica rapa leaves samples were of high purity, high yield and complete electrophoretic bands.

Case 2:

Table 2、DNA extraction results from frozen tobacoo leaves

Sample	No.	A260/A280	A260/A230	Conc.(ng/μL)
frozen tobacoo leaves 5 mg	1	1.821	1.318	14.2
	2	1.831	1.311	15.4
	Avg	1.826	1.3145	14.8
	3	1.872	1.586	61.9
	4	1.803	1.421	63.5
	Avg	1.8375	1.5035	62.7
	5	1.828	1.436	24.3
	6	1.921	1.226	19.5
	Avg	1.8745	1.331	21.9

The electropherogram is shown below:

Result analysis: The DNA extracted from frozen tobacco leaves with this product had good purity, high yield and intact bands.

Case 3:

Table 3、DNA extraction results from fresh pothos leaves

No	Sample	Sample intake（mg）	A260/A280	A260/A230	Conc.(ng/µL)
1	fresh pothos leaves	10 mg	1.862	1.197	47.75
2			1.885	1.052	50.95
3			1.829	0.987	59.4
4			1.854	1.028	56.45

The electropherogram is shown below:

Result analysis: The DNA extracted from fresh tobacco leaves with this product had good purity, high yield and intact bands.

【Application area】

Genomic DNA purified by this kit can be used for PCR, qPCR, Enzyme digestion, SNP genotyping , Next-generation sequencing, library construction,molecular breeding and other biological experiments .

Our products are widely used in many fields, such as medical testing, genetic testing, university research, genetic breeding, and so on. We not only provide products but can also undertake OEM, ODM, and other needs. If you have related needs, please feel free to contact us at sales01@lingjunbio.com.
