Professional Manufacturer of Biomagnetic Beads
PRODUCT PARAMETERS
- Product No.: 231018
- Extraction Methods: magnetic bead method
- Sepc: Bottled 50T/box, 100T/box, 200T/box
Description
(Magnetic Bead Method)
【Product Introduction】
Fungal mycelium, sporocarp, spores, and other samples release nucleic acid under the action of lysate. The nucleic acid is separated from other impurities in the sample by the specific adsorption of magnetic beads, and then rinsed with washing buffer to remove proteins, polysaccharides, inorganic salts, etc., and finally eluted to obtain purified nucleic acid. The obtained nucleic acid products can be used for PCR, DNA detection and analysis, molecular hybridization, gene mutation detection, and sequencing.
【Product advantages】
- Core raw materials are produced by ourselves and product quality and output are guaranteed.
2. The extraction products had high purity, high yield and complete electrophoretic bands.
3. Magnetic bead method extraction can realize automatic operation.
4. The process of use is safe, and the product does not contain phenol, chloroform and other harmful reagents.
5. Because of strong versatility, it is suitable for a variety of fungi mycelium, sporocarp, spores and other samples for the extraction of nucleic acids.

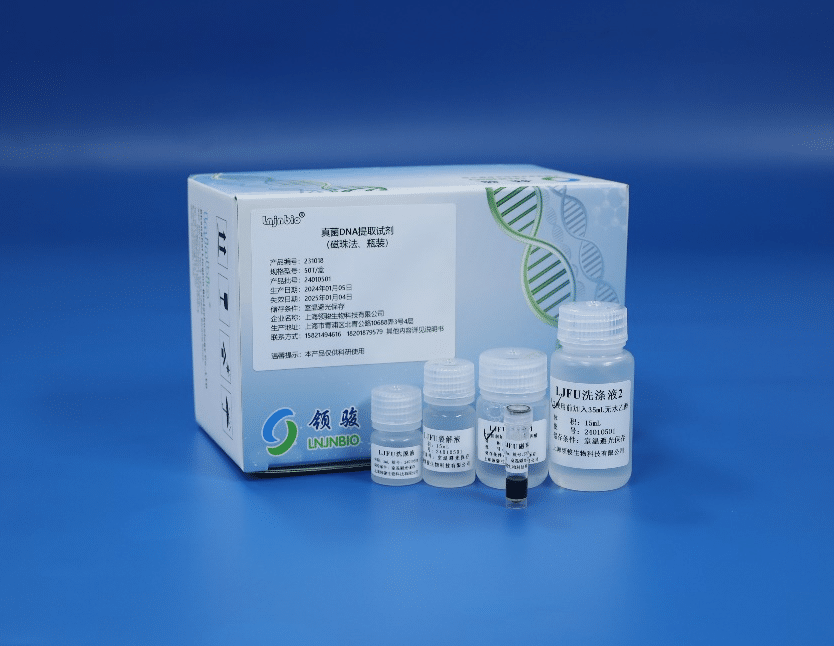

【Product image】
【Experimental cases】
Case 1:
For different fungal samples, DNA was extracted with the results as follows:
No. | Sample | Sampe intake (mg) | A260/A280 | A260/A230 | Conc.(ng/μL) |
1 | Pleurotus eryngii | 20 | 1.84 | 1.63 | 346.6 |
2 | 1.82 | 1.68 | 344.0 | ||
3 | Pleurotus ostreatus | 10 | 1.82 | 1.86 | 278.6 |
4 | 1.87 | 1.91 | 242.2 | ||
5 | White Shimeji | 10 | 1.93 | 2.22 | 112.5 |
6 | 1.96 | 2.17 | 97.5 |
The electropherogram is as follows:
Result analysis: DNA from various fungal samples extracted with this product showed good purity, high yield and complete bands.
Case 2:
For different fungal samples, nucleic acids were extracted and the results were as follows:
No. | Sample intake | A260/A280 | A260/A230 | Conc.(ng/ul) | Yield(μg) |
1 | 5 mg Yeast | 1.948 | 2.095 | 95.8 | 9.58 |
2 | 1.953 | 2.113 | 100.1 | 10.01 | |
Avg | 1.9505 | 2.104 | 97.95 | 9.795 | |
3 | 5mg Aspergillus hyphae | 1.863 | 1.863 | 176.9 | 17.69 |
4 | 1.862 | 1.868 | 174.35 | 17.435 | |
Avg | 1.8625 | 1.8655 | 175.625 | 17.5625 | |
5 | 20mg Lentinula edodes | 1.923 | 2.142 | 321.55 | 32.155 |
6 | 1.921 | 2.139 | 324.05 | 32.405 | |
Avg | 1.922 | 2.1405 | 322.8 | 32.28 | |
7 | 30 mg Hypsizygus marmoreus | 1.94 | 1.993 | 619.35 | 61.935 |
8 | 1.944 | 1.985 | 626 | 62.6 | |
Avg | 1.942 | 1.989 | 622.675 | 62.2675 | |
9 | 30 mg Eryngium campestre | 1.972 | 2.181 | 141.55 | 14.155 |
10 | 1.968 | 2.194 | 141 | 14.1 | |
Avg | 1.97 | 2.1875 | 141.275 | 14.1275 |
Peak pattern diagram:
Yeast:
Aspergillus hyphae:
Lentinula edodes:
Hypsizygusmarm oreus:
Eryngium campestre:
Total peak diagram:
The electropherogram is shown below:
M:Marker(2,000 bp, 1,000 bp, 750 bp, 500 bp, 250 bp, 100 bp);
1-2: 5 mg Yeast 3-4: 5mg Aspergillus hyphae 5-6: 20mg Lentinula edodes
7-8: 30 mg Hypsizygus marmoreus 9-10: 30 mg Eryngium campestre
Result analysis:
The results of the Ultra-Micro Nucleic Acid Assay test showed that:
① The value of A260 / A280 is from 1.86 to 1.97, and the value of A260 / A230 is above 1.86. The complete and basic coincidence of peak shape prove the high purity of the extraction product.
② The nucleic acid extraction yield of different fungal samples was above 9 µg.
The results of the agarose gel electrophoresis showed that:
① Different fungal samples have bright and good integrity bands.
② In conclusion, using automatic nucleic acid extraction and purification instrument to extract different fungal samples, the extraction product has high purity, high yield, complete electrophoretic band. The reagent has good stability when used with the instrument.
【Application area】
The purified nucleic acids extracted from this kit can be used for PCR, qPCR, enzyme digestion, library construction, and Southern-Blot.
Our products are widely used in many fields, such as medical testing, genetic testing, university research, genetic breeding, and so on. We not only provide products but can also undertake OEM, ODM, and other needs. If you have related needs, please feel free to contact us at sales01@lingjunbio.com.
Supplier Introduction
Shanghai Lingjun Biotechnology Co., Ltd. was established in 2016 and is a professional manufacturer of biomagnetic materials and nucleic acid extraction reagents.
We have rich experience in nucleic acid extraction and purification, protein purification, cell separation, chemiluminescence and other technical fields.
Our products are widely used in many fields, such as medical testing, genetic testing, university research, genetic breeding, and so on. We not only provide products but can also undertake OEM, ODM, and other needs. If you have related needs, please feel free to contact us at sales01@lingjunbio.com.
FAQs
We have magnetic beads in silica, magnetic beads in carboxylic acid, and various kits for nucleic acid extraction by magnetic bead method (samples can be extracted from whole blood, serum plasma free, plasmid, etc.), and the packing specifications of magnetic beads are 2ml, 10ml, 50ml, 500ml, 1000ml, etc. The packing specifications of the kits are: bottles are 50T/box, 100T/box, 200T/box, and the pre-filled kits are 32T/box, 48T/box, 64T/box, 96T/box, and 48T/box. We have 32T/box, 48T/box, 64T/box, 96T/box, and so on.
Land transportation, sea transportation, air transportation, you can choose according to your requirements.
Of course, we provide customized service and also support OEM\ODM.
First, confirm the demand, then sign the contract; after receiving the payment, we will ship the goods within the stipulated or mutually agreed delivery period.
Usually, we will send out the goods within 15 working days after receiving the payment; customized products and large quantities of orders (magnetic beads ≥ 10L, nucleic acid extraction reagents ≥ 300000T) need to be determined by both sides to communicate with the delivery period.
