Endotoxin-free Plasmid DNA Extraction Kit for Middle-volume Samples 241001M

(Magnetic Bead Method)

【Product Introduction】

This product uses alkali lysis method to extract plasmid DNA from cultured bacteria, using the unique solution formula only needs a few simple cleaning to remove endotoxin, protein, polysaccharide and other impurities, to obtain high quality plasmid DNA. The extraction of purified plasmid DNA from this product caused little damage to plasmid, high extraction concentration and high supercoiled ratio. Plasmid DNA prepared by EndoFree Mini Plasmid Kit is suitable for a variety of routine applications including restriction enzyme digestion, PCR, sequencing, ligation, and transformation.

【Product advantages】

1. Our own production of core raw materials, product quality and output are guaranteed.

2. It can effectively remove the endotoxin and improve transfection efficiency.

3. Extraction plasmid DNA purity is high. OD₂₆₀ / OD₂₈₀ is usually around 1.8-2.0. Supercoil ratio is high.

4. Simple operation, fast, safe, no need for phenol / chloroform and other toxic organic reagents.

5. It can cooperate with the automatic nucleic acid extraction and purification instrument to realize the automatic and high-throughput operation.

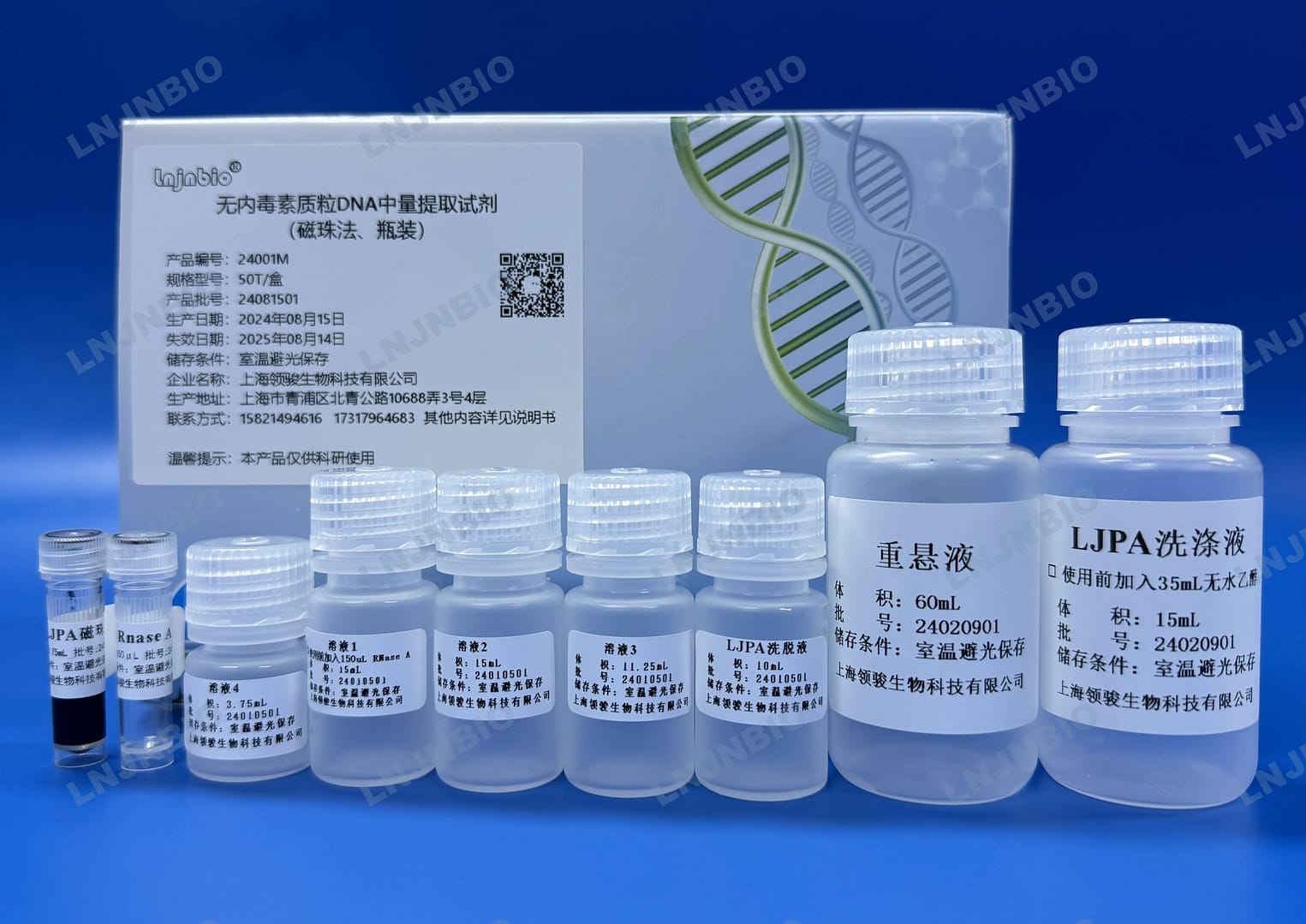

【Product image】

【Experimental cases】

Case:

• The sample is DH 5α E. coli (containing PHY300PLK-egls gene plasmid, base pair about 6000 bp, low copy plasmid), bacterial solution OD₆₀₀ = 0.032. Plasmid was extracted by LJbio192H fully automated nucleic acid extraction and purification instrument. After extraction was determined by Quawell Q5000 trace ultraviolet visible spectrophotometer, the results are as follows:

Number	Bacterial Solution Volume(mL)	A260/A280	A260/A230	Conc.(ng/μL)	Elution Volume (µL)	Yield(ug)
1	50	1.832	2.081	182.95	500	91.48
2		1.82	2.06	207.55		103.78
Average		1.826	2.071	195.25		97.63

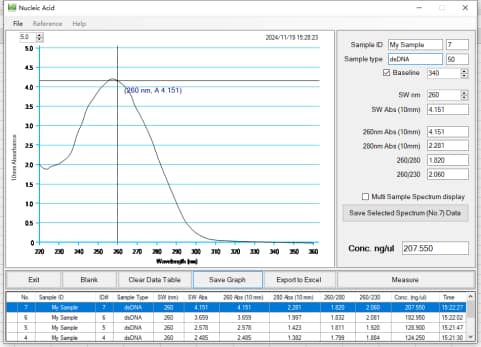

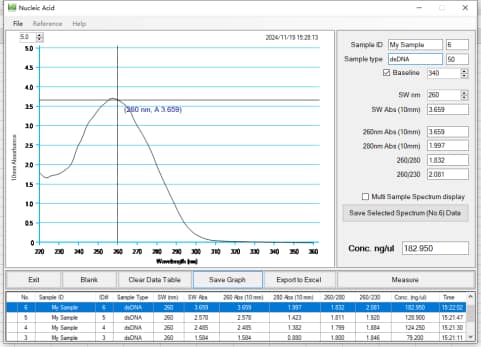

The peak patterns are as follows:

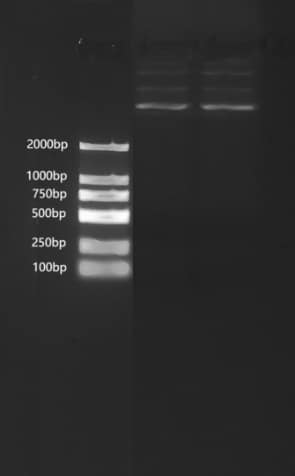

The electrophoresis results are as follows::

Note: the original concentration of 6 μL on the sample electrophoresis, agarose gel concentration of 1%, 120 V electrophoresis.

(2) Results analysis:

Quawell Q5000 The results of microultraviolet visible spectrophotometer show that:

① The value of  A₂₆₀ / A₂₈₀ is 1.82-1.832 and A₂₆₀ / A₂₃₀ is 2.06-2.081, demonstrating the high purity of the extracted product.

② Under OD₆₀₀ = 0.032, the yield of 50 mL of culture solution can reach about 97.63 µg.

The results of the agarose gel electrophoresis then showed that:

The bands are bright and complete.

In conclusion, 50 mL of endofree DNA was extracted from plasmid, producing the products with high purity, high yield and complete electrophoretic bands.

【Application area】

The plasmid DNA extracted using this kit can be used in various biological experiments, such as enzyme digestion, sequencing, library screening, ligation and transformation, etc.
