Lnjnbio Magnetic Beads for Animal Tissue Genomic DNA Extraction Kit 231014

(Magnetic Bead Method, No Centrifugation)

【Product Introduction】

Various animal tissues and cultured cells, such as animal muscle, liver, spleen, etc., release nucleic acid under the action of lysate, and the nucleic acid is separated from other impurities in the sample by the specific adsorption of magnetic beads, and then rinsed by the washing solution to remove proteins, polysaccharides, inorganic salt ions, etc., and finally, after the elution, we get the purified nucleic acid, and the nucleic acid product obtained can be used for PCR, nucleic acid detection and analysis, molecular hybridization, gene mutation detection and sequencing and other experiments.

【Product advantages】

1, Extraction by magnetic bead method without centrifugation, simple operation, and can realize automatic operation.

2, High purity, high yield and complete electrophoretic bands.

3, Strong versatility, suitable for extracting genomic DNA from various tissue samples of different animal species.

4, Safe to use, no need to grind with liquid nitrogen, and the product does not contain harmful reagents such as phenol and chloroform.

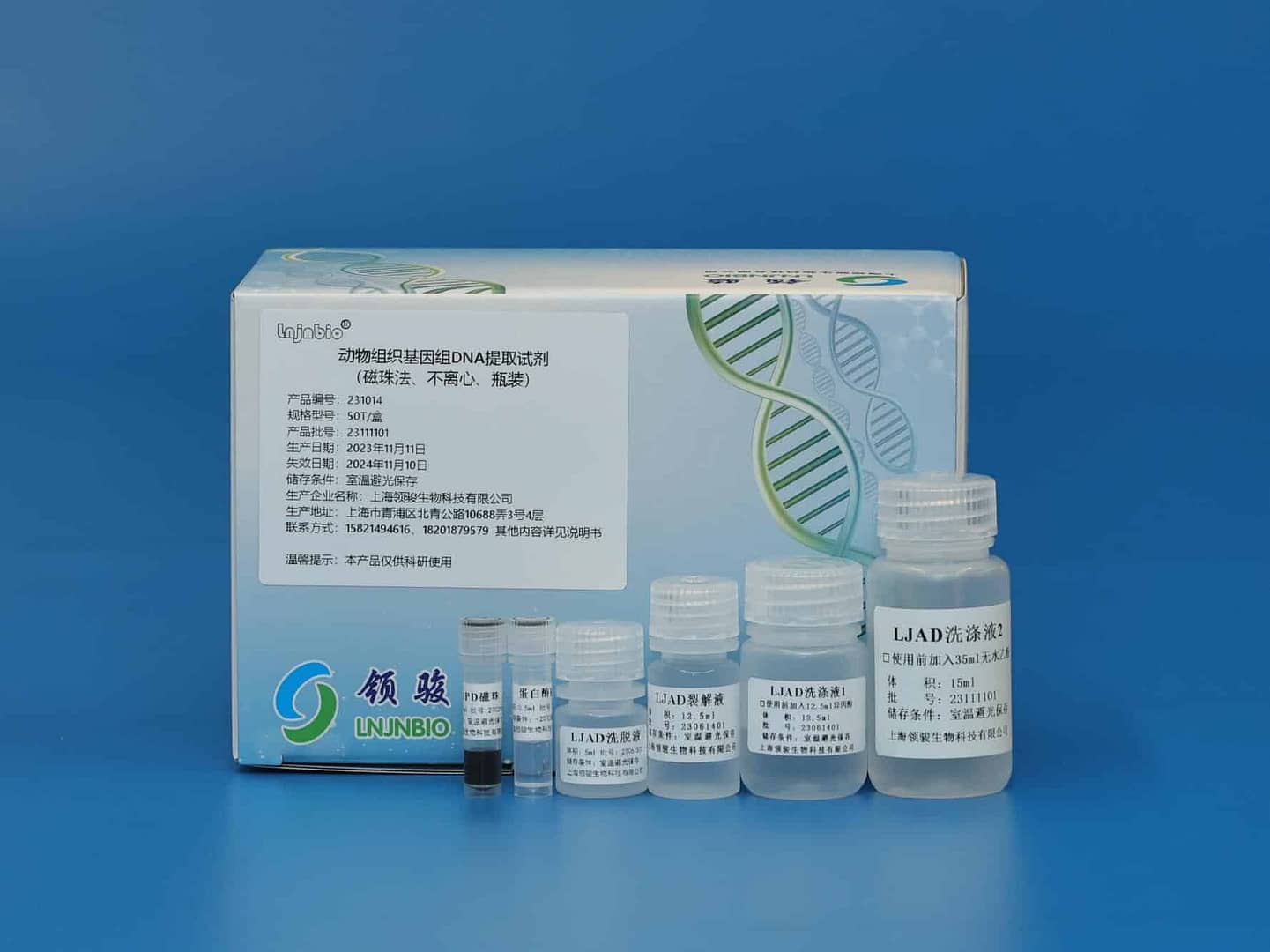

【Product image】

【Experimental case】

Different tissue samples from different animals were extracted for DNA/RNA

 Case1:

No.	Sample intake	A260/A280	A260/A230	Conc.(ng/ul)	Yield（μg）
1	30mg Pork	1.886	2.037	113.1	11.31
2		1.897	2.058	113.4	11.34
Avg		1.892	2.048	113.25	11.325
3	20mg Shrimp	1.889	2.06	139.5	13.95
4		1.894	2.064	141.05	14.105
Avg		1.892	2.062	140.275	14.028
5	30mg Beef	1.837	2.001	135.2	13.52
6		1.842	2.037	135	13.5
Avg		1.834	2.019	135.1	13.51
7	30mg Mutton	1.851	2.043	175.75	17.575
8		1.84	2.073	180.25	18.025
Avg		1.846	2.058	178	17.8
9	20mg Chicken	1.889	2.06	139.5	13.95
10		1.894	2.064	141.05	14.105
Avg		1.892	2.062	140.275	14.028
11	50mg Fish	1.873	2.097	237	23.7
12		1.875	2.083	233.2	23.32
Avg		1.874	2.09	235.1	23.51
13	3mg Fish heart	1.827	2.236	140.4	14.04
14		1.818	2.201	145.7	14.57
Avg		1.823	2.219	143.05	14.305
15	3mg Fish liver	1.791	2.295	293.3	29.33
16		1.781	2.308	326.7	32.67
Avg		1.786	2.302	310	31

Peak pattern：

Pork：

Shrimp：

Beef：

Mutton：

Chicken：

Fish：

Fish heart：

Fish liver：

The electropherogram is shown below：

M:Marker（2K，1K，750bp，500bp，250bp，100bp）;

1-2：30mg Pork       3-4：20mg Shrimp      5-6：30mg Beef       7-8：30mg Mutton

9-10：20mg Chicken    11-12：50mg Fish      13-14：3mg Fish heart    15-16：3mg Fish liver

Analysis of result：

The test results of the ultra-micro nucleic acid analyzer showed that:

①The value of A260/A280 is 1.78-1.9, and the value of A260/A230 is above 2.0, and the peak shape is complete and basically coincides, which proves that the purity of the extracted product is high.

②The yield of nucleic acid extraction from different animal tissue samples was more than 11 μg.

The results of agarose gel electrophoresis showed that:

①Tissue samples from different animals all had bright bands and good integrity.

In summary: the automatic nucleic acid extraction and purification instrument was used to extract different animal samples, and the extracted products had high purity, high yield, complete electrophoresis bands, and the reagents and instruments were uniform and stable.

【Application area】

Genotyping of fresh or frozen animal tissues and cultured cells, high-throughput PCR screening of large-scale biological samples, transgene screening, knockout analysis and sequencing, enzyme digestion, PCR, Southern-Blot and library construction and other experiments.

Supplier Introduction

Shanghai Lingjun Biotechnology Co., Ltd. was established in 2016 and is a professional manufacturer of biomagnetic materials and nucleic acid extraction reagents.

We have rich experience in nucleic acid extraction and purification, protein purification, cell separation, chemiluminescence and other technical fields.

Our products are widely used in many fields, such as medical testing, genetic testing, university research, genetic breeding, and so on. We not only provide products but can also undertake OEM, ODM, and other needs. If you have related needs, please feel free to contact us at sales01@lingjunbio.com.
